AST SK96-205 Zero Point Fixture
A precision clamping fixture designed for CNC machining centers, featuring exceptional repeatability within 0.005mm and significant cycle time reduction capabilities.
Product Overview
The Zero Point Fixture revolutionizes precision machining and workholding with its compact 208×106×25mm design. This innovative clamping system provides maximum efficiency while minimizing space requirements in various machining environments.
Key Features
- Exceptional repeatability within 0.005mm
- Cycle time reduction up to 80%
- Quick installation under 5 minutes

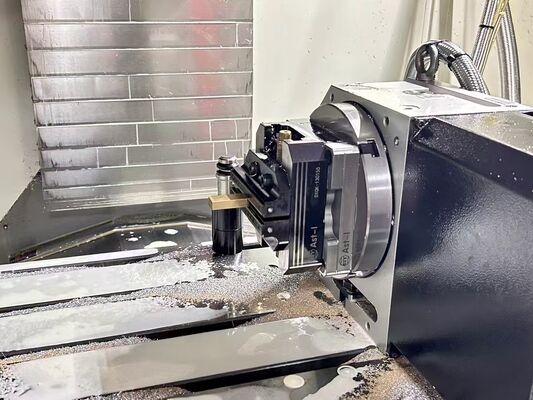

- Compatible with 3, 4, and 5-axis CNC machining centers
- Compact dimensions: 208×106×25mm
- OEM customization support available
- Functions as 4-axis vise and adjustable milling vise
Technical Specifications
| Brand |
AST |
| Model |
SK96-205 |
| Dimensions |
208×106×25mm |
| Repeatability |
Within 0.005mm |
| Weight Range |
5-20kg (varies by model) |
| Lifespan |
1-5 years with proper maintenance |
Applications

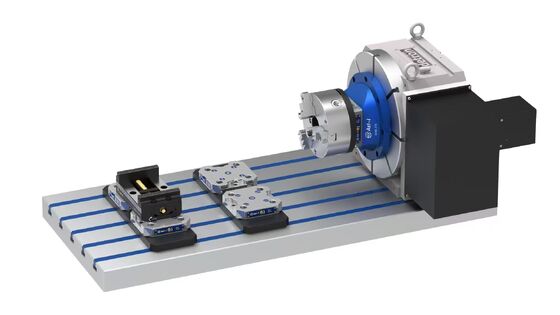

Ideal for high-precision industries including aerospace, automotive, and mold making. Perfect for CNC machining workshops requiring quick workpiece changeover and exact tolerances. Compatible with 4-axis machining centers and 5th axis self-centering vises for complex multi-axis operations.
Customization Services
AST offers comprehensive OEM customization for the SK96-205 Zero Point Fixture. Tailor the fixture to your specific operational requirements, including specialized setups for 4-axis vise and 5th axis self-centering vise applications.
Support & Services
Comprehensive technical support including installation guidance, troubleshooting, maintenance advice, calibration support, and staff training. Documentation provided includes user manuals, installation guides, and troubleshooting FAQs.
Packaging & Shipping
Securely packaged in custom-designed durable boxes with high-density foam inserts. All components individually wrapped and labeled. Includes user manual and installation guide. Multiple shipping methods available with tracking options and international shipping support.
Frequently Asked Questions
What is the brand and model number of the Zero Point Fixture?
Manufactured by AST, model number SK96-205.
What is the primary use of the AST SK96-205 Zero Point Fixture?
Quick and accurate workpiece positioning in CNC machining centers, improving setup times and machining precision.
Is the AST SK96-205 compatible with various machine brands?
Yes, designed for compatibility with a wide range of CNC machines across different manufacturing environments.
How does the AST SK96-205 improve machining efficiency?
Enables fast workpiece changes with repeatable accuracy, reducing downtime and increasing overall productivity.
What materials is the AST SK96-205 Zero Point Fixture made from?
Constructed from high-quality, durable materials designed to withstand industrial machining applications.
