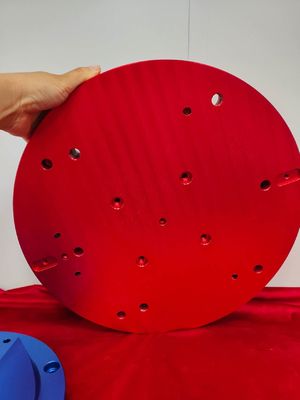

Multi Mount 96mm CNC Riser CNC Clamping Fixtures 3 Working Side Pyramids For 5 Axis

96mm Riser (Multi-Mount) Pyramids And Clamping Fixtures For 5 Axis Riser 3 Working Station

We can customized the riser height and installation hole according to your workingholders condition!

Utilzing the zero point quick change system or another 52mm / 96mm pull stud quick change system? Simply thread in the pull studs and the vise is now ready for quick change.

Direct mount all AST Axis vise from the top down utilizing standard socket head cap screws. Bolt the vise directly to the t-slots on the machine table.

Features:

Less setup time means less cost.

High reliability, repeat positioning accuracy within0.02mm.

Hardened surface and position, wear resisitance, long life.

A single contact interface can be used for almost all machine tools.

Through the use of zero positioning system, can greatly optimize the production process of clamping and changing.

AST advocates continuous research and development and innovation, and contributes to the improvement of production efficiency and processing accuracy in the manufacturing industry.

1, Quick change vise and clamps.

The standard mounting pattern allows vises, clamps and tools to be easily moved between machines without setup time.

2,High Accuracy

design ensures equal force on all 4 pull studs, guaranteed repeatability to less than 0.0005"

96mm Riser (Multi-Mount) 3 working station

Size: Ø400.0mm x 115.0mm

Material: Aluminum (A)

Maximize changeout efficiency with the clamping system
