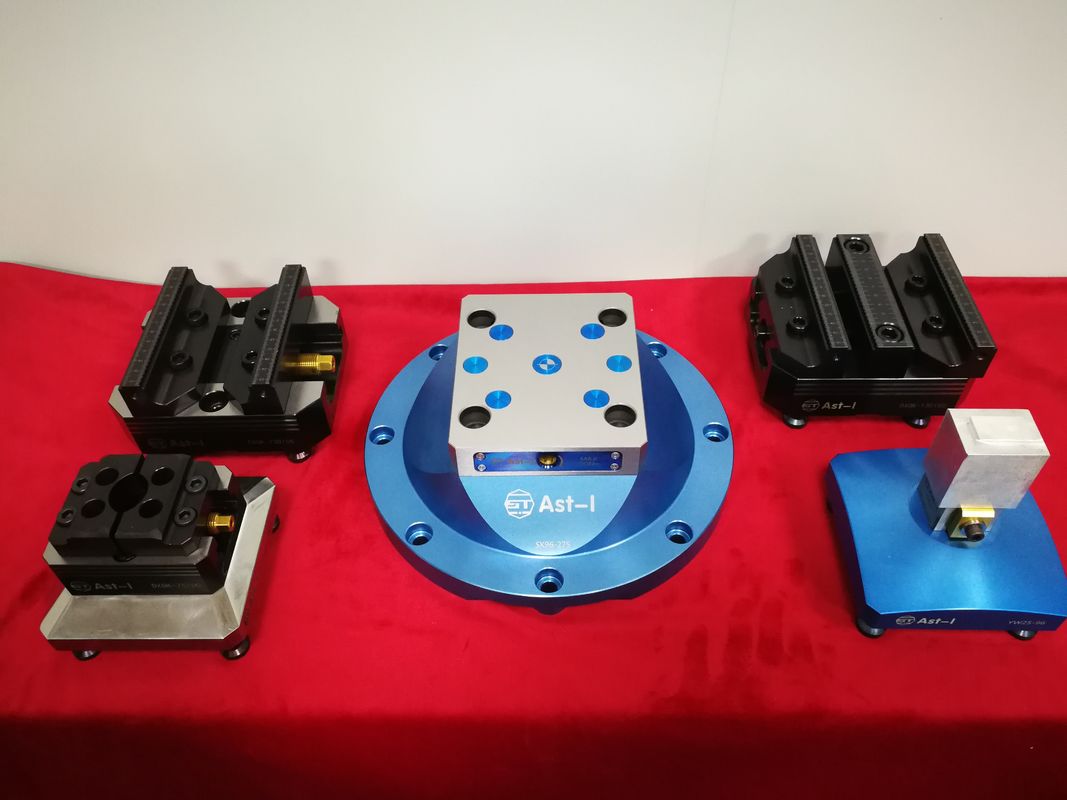

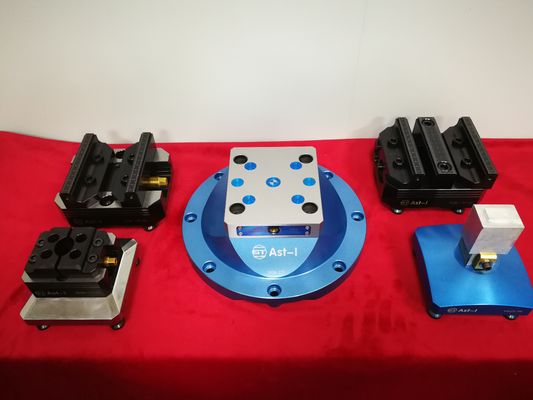

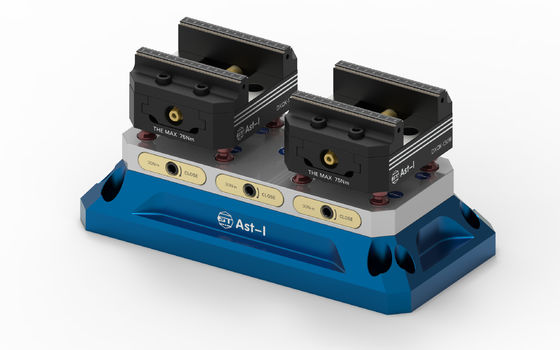

Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture

Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture
Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture
Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture

Büyük resim :  Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: AST
Model numarası: DXQ150250
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Ambalaj bilgileri: karton ambalaj 205*180*124mm
Teslim süresi: 5-8 iş günü
Ödeme koşulları: T/T
Yetenek temini: Siparişi onayladıktan sonra 5-7 iş günü
İletişim

Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture

Açıklama
CNC: 5 eksenli mengene Modeli: 150250
Boyut: 150x250x94m Malzeme: Alaşım çelik
ön satış sağlamak: 3d dosya sağlayın Renk: Siyah
Vurgulamak:

240mm Axis Fixtures

,

Axis Fixtures 100Nm

,

Stainless Steel 5 Axis Fixture

 Compact Multi-Power 5-Axis Self Centering Vise For Cnc Milling Machine 150250

  • Extremely High Accuracy and Repeatability
  • Special MULTI-POWER design enhances clamping force of 5000KG
  • Suitable for CNC 5-Axis Machining Centers, horizontal and vertical CNC Machining Centers
    • 1. Compact design with big jaw opening, which enhances machine space utilization.
    • 2. Vise jaws are made of High quality Tool Steel and Hardened to achieve HRC 55 , which makes vise clamp the workpieces easily and firmly.
    • 3. Vise body is made of alloy steel and its slideways are hardened to HRC 52 , which makes the vise tensile strength with high precision accuracy.
    • 4. The patented MULTI-POWER SYSTEM is built of high grade BEARING STEEL which doubles the clamping force. Adjustable clamping force 5000kg. With this special patented system the pressure is more consistent and eliminates oil leakage and maintenance problems associated with Hydraulic Vises.
    • 5. Special Leadscrew Covers protect Leadscrew from swarf and avoid any possible damage to internal parts.

Product Description:



Size: 150x250x94m
Clamping range: 0-240mm
Clamp body width: 150mm
Maximum torque: 100Nm
Weight: 16Kg

Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 0



Max opening 155mm self centering 5 axis vise

1. Material: steel.

2. Warranty: 1 years

5. max clamping range: 155mm

Product Name
self centering vise DXQ150250
Material
stainless steel
Used
Four-axis, five-axis, CNC indexing plate, precision machining of vertical horizontal CNC milling machine.
Advantage
Easy to use,precise clamping.



Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 1Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 2Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 3Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 4Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 5Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 6





Etiket:

Axis Fixtures,

Cnc Turning Fixtures,

Cnc Axis Fixtures
