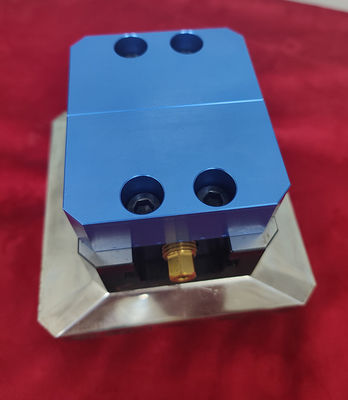

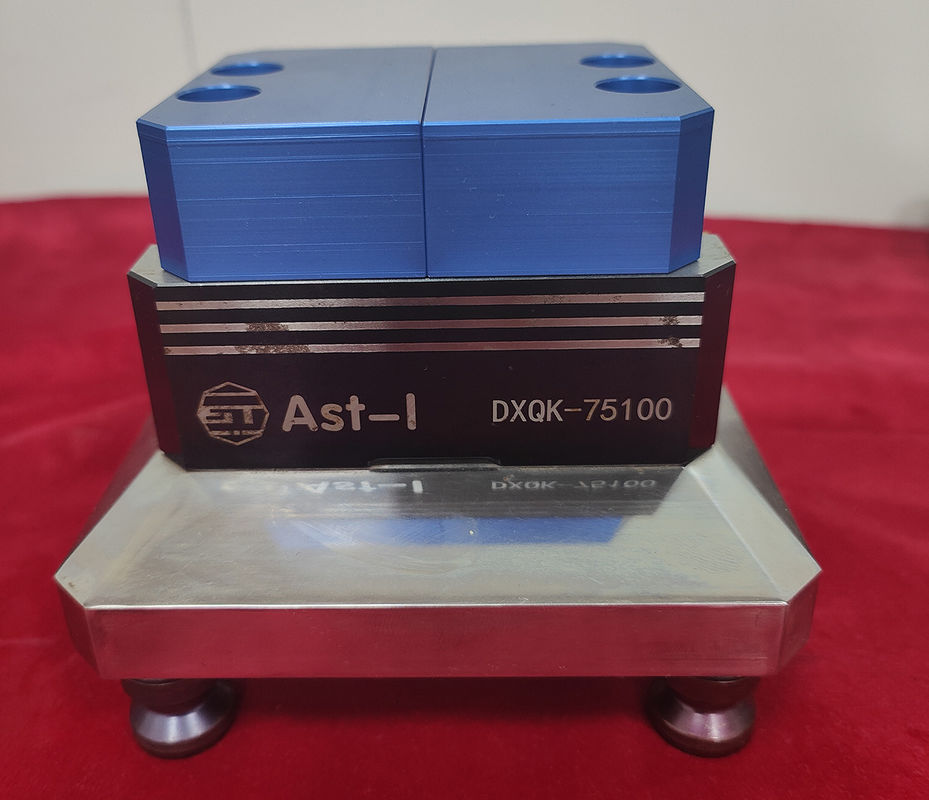

5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm

5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm
5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm
5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm

Büyük resim :  5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: AST
Model numarası: DXQ75100-96
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Ambalaj bilgileri: karton ambalaj boyutu 160*160*95mm
Teslim süresi: 5-8 iş günü
Ödeme koşulları: T/T
Yetenek temini: Siparişi onayladıktan sonra 5-7 iş günü
İletişim

5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm

Açıklama
Özellikler: 96 tutma ile Uygunluk:: 3/4/5 eksen
Malzeme: Alaşım çelik Tekrar doğruluğu: 0.02mm içinde
Sıkıştırma aralığı: 0-77mm mavi çene malzemesi: Alüminyum
Vurgulamak:

5 Axis Cnc Milling Fixtures

,

Cnc Milling Fixtures

,

Clamping Fixture 75mm

Manual Fixture 5-Axis Self Centering Vise With Aluminium Jaws For 3/4/5 Cnc Milling Machine 75100-96



Product Description:

vise size

Size: 75x100x56m
Clamping range: 0-77mm
Clamp body width: 75mm
Maximum torque: 60Nm
Weight: 2.5Kg



This vise with 96 series holding.without 96mm to 52mm Adapter!



5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 0



Max opening 155mm self centering 5 axis vise

1. Material: steel.

2. Warranty:1 years

5. max clamping range: 0-77mm

Product Name
self centering vise DXQ75100-96
Material
stainless steel
Used
Four-axis, five-axis, CNC indexing plate, precision machining of vertical horizontal CNC milling machine.
Advantage
Easy to use,precise clamping.


5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 15 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 25 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 35 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 4
5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 5
 5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 65 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 75 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 85 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 9
