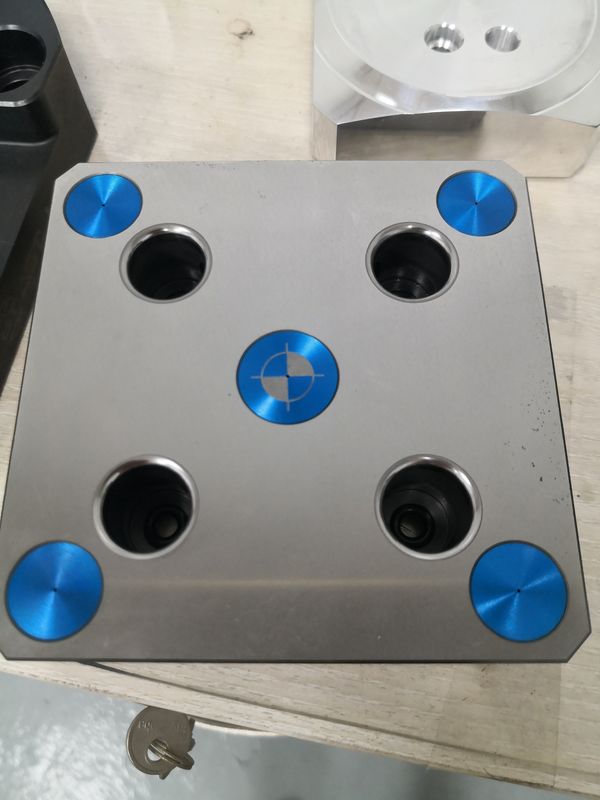

Manual Zero Point Clamping Quick-Change Single Pallet System SK52-S145

The AST quick change workholding base system is the foundation of your workholding and the key to superior productivity.

The product mounts to your machine bed, tombstone, pyramid or riser.

AST offers best-in-class accuracy and repeatability and maintains a superior holding force on the top tool. Mate takes the term Zero Point very seriously.

AST has what it takes to securely hold your vise, whether you change the same vise repeatedly or exchange it for a different one. AST reduces your machine setup times and keeps you in the cut.

No need to disassemble and  calibrate time.

Advantages:
Positioning and clamping in one operation
Workpiece/device changed in seconds
Single interface for all machines
Repeat accuracy within 0.005 mm
Fast with precision to < 0.005 mm
from machine table to the measuring machine and back again

Size:106x106x25mm
Repeat position:0.005mm
Locking force:18KN (4pcs pull stud)
Material: steel
Weight:1.8Kg
