Manual CNC Milling Clamps 0.005mm Quick Change Pallet System

Manual CNC Milling Clamps 0.005mm Quick Change Pallet System
Manual CNC Milling Clamps 0.005mm Quick Change Pallet System
Manual CNC Milling Clamps 0.005mm Quick Change Pallet System Manual CNC Milling Clamps 0.005mm Quick Change Pallet System Manual CNC Milling Clamps 0.005mm Quick Change Pallet System Manual CNC Milling Clamps 0.005mm Quick Change Pallet System Manual CNC Milling Clamps 0.005mm Quick Change Pallet System Manual CNC Milling Clamps 0.005mm Quick Change Pallet System

Büyük resim :  Manual CNC Milling Clamps 0.005mm Quick Change Pallet System

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: AST
Model numarası: SK96-205
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Ambalaj bilgileri: 200*210*60mm
Teslim süresi: 5-8 iş günü
Ödeme koşulları: T/T
İletişim

Manual CNC Milling Clamps 0.005mm Quick Change Pallet System

Açıklama
İsim: CNC Freze Kelepçeleri Malzeme: Çelik
Özellikler: Değiştirme verimliliğini en üst düzeye çıkarın Tekrarlanabilirlik: 0,005 mm dahilinde
Uygunluk:: ağır kesme Standart Aksesuar: 4 Çekme Çivisi.
Vurgulamak:

Manual CNC Milling Clamps

,

CNC Milling Clamps

,

0.005mm Quick Change Pallet System

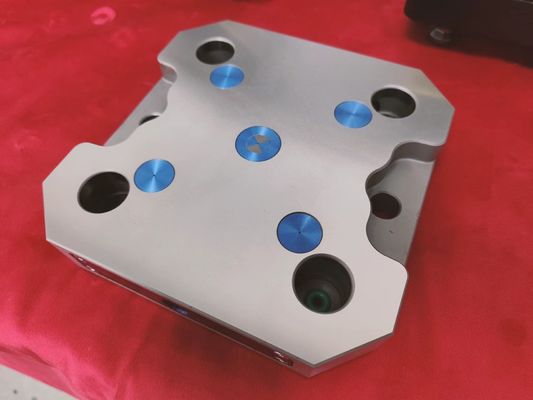

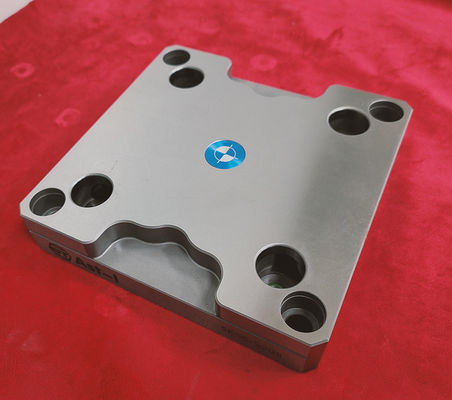

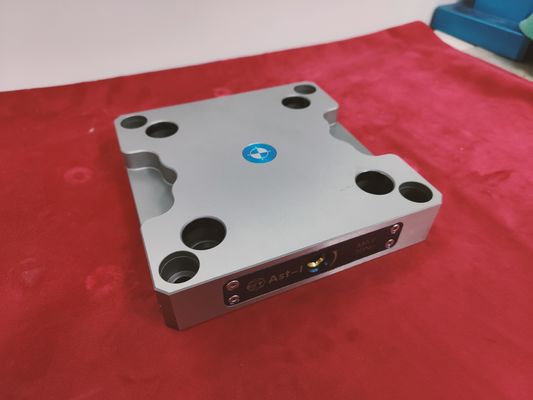

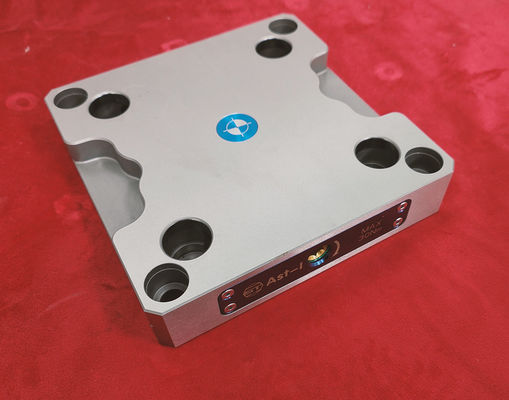

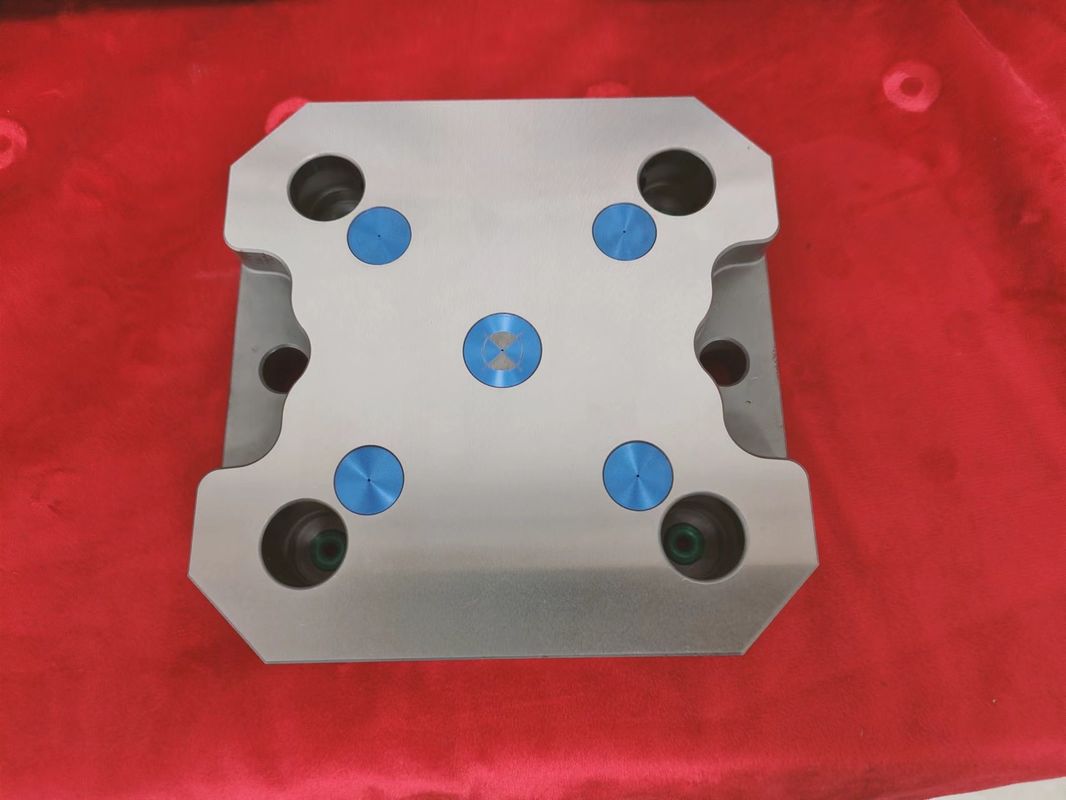

Manual Zero Point Clamping Quick-Change Single Pallet System SK96-S205



The four-hole zero-point locator is a positioning tool that can quickly exchange fixtures and fixed
fixtures, The standard installation method enables tools such as vices, pallets, chucks, etc, to be
quickly and repeatedly changed between various cnc machine tools.



No need to disassemble and  calibrate time.



Size:150x150x30mm
Repeat position:0.005mm
Locking force:22KN (4pcs pull stud)
Material: steel
Weight:4.0Kg



Manual CNC Milling Clamps 0.005mm Quick Change Pallet System 0

Manual CNC Milling Clamps 0.005mm Quick Change Pallet System 1

Manual CNC Milling Clamps 0.005mm Quick Change Pallet System 2Manual CNC Milling Clamps 0.005mm Quick Change Pallet System 3Manual CNC Milling Clamps 0.005mm Quick Change Pallet System 4Manual CNC Milling Clamps 0.005mm Quick Change Pallet System 5Manual CNC Milling Clamps 0.005mm Quick Change Pallet System 6
